UNIVERSAL SHOCKS / COILOVERS
HIGH PERFORMANCE RACE-BRED MONOTUBE TECHNOLOGY

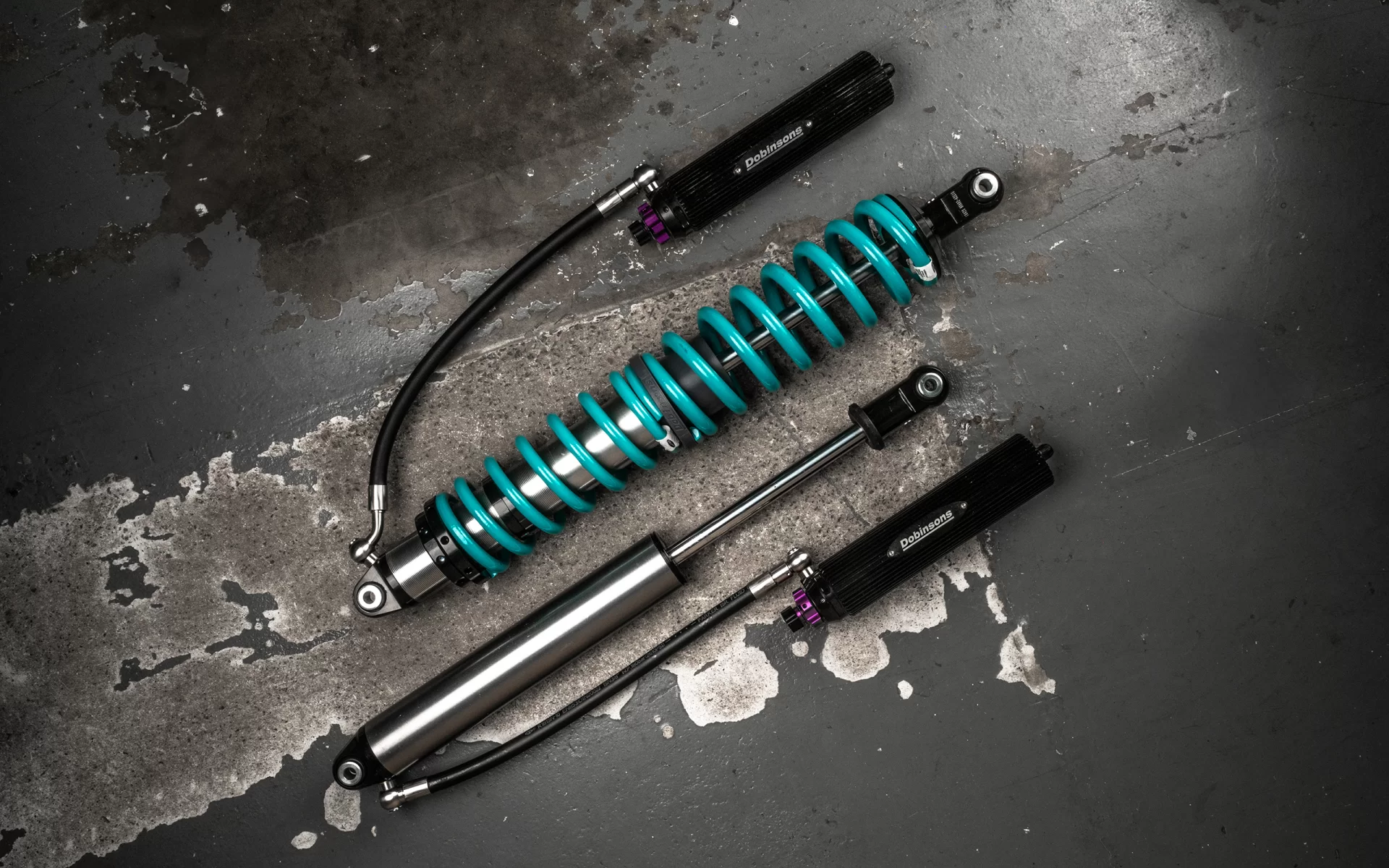

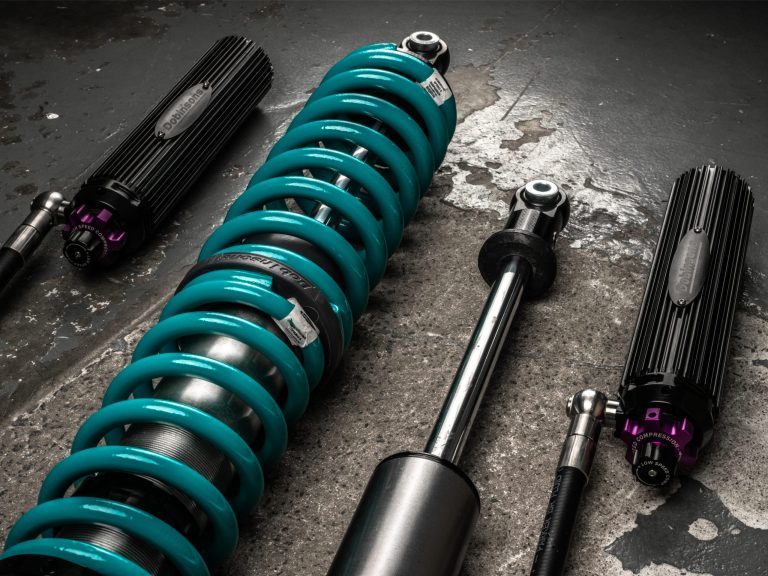

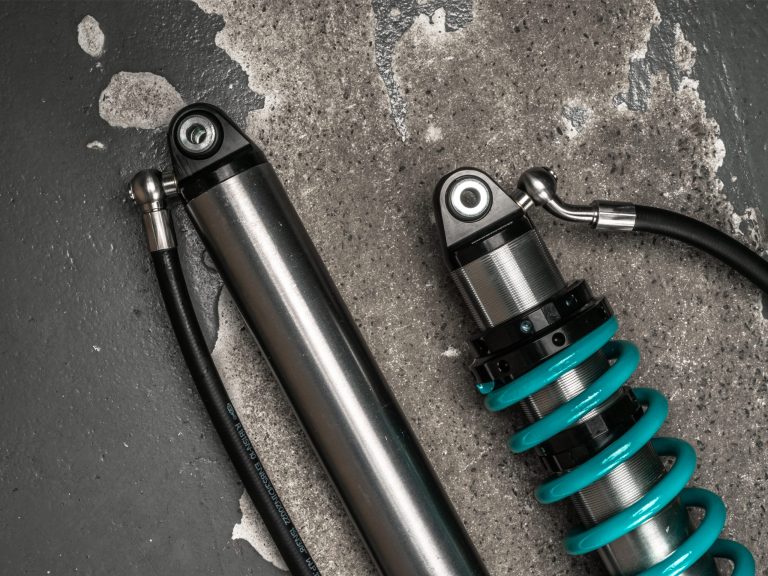

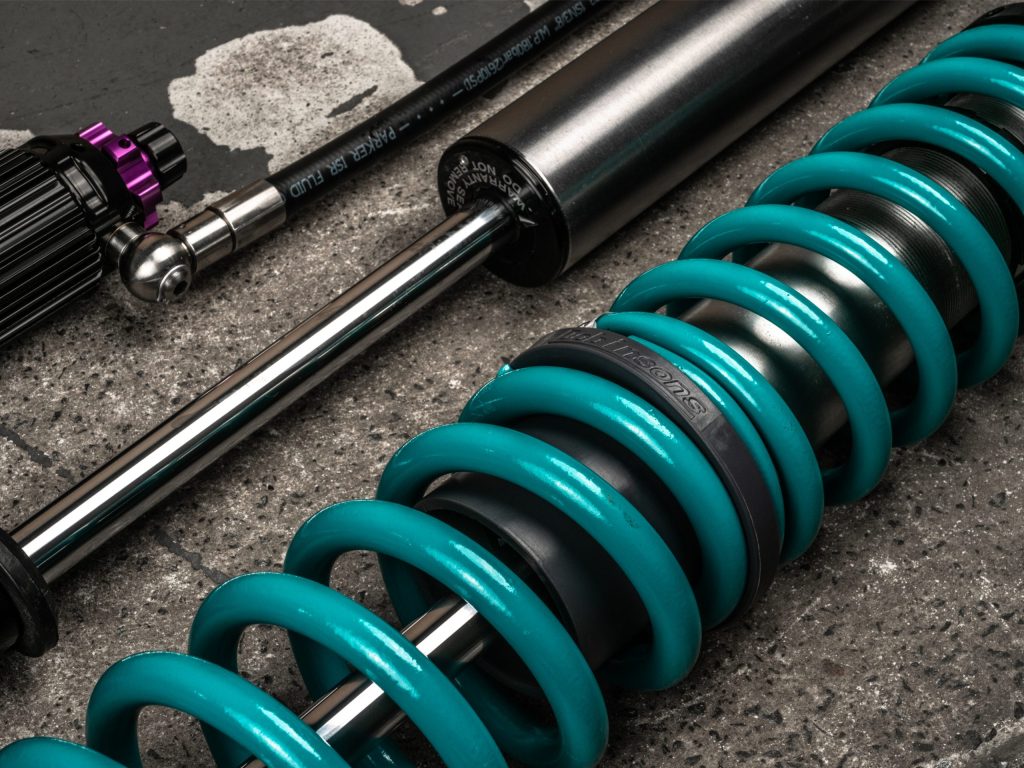

Dobinsons Spring & Suspension’s new High Performance UNIVERSAL COILOVER & LONG TRAVEL SHOCK ABSORBER.
Tailored for custom and long travel suspension setups these products offer ADVANCED ADJUSTABILITY in compression and rebound. Elevate your
off-road experience with Dobinsons superior suspension technology.

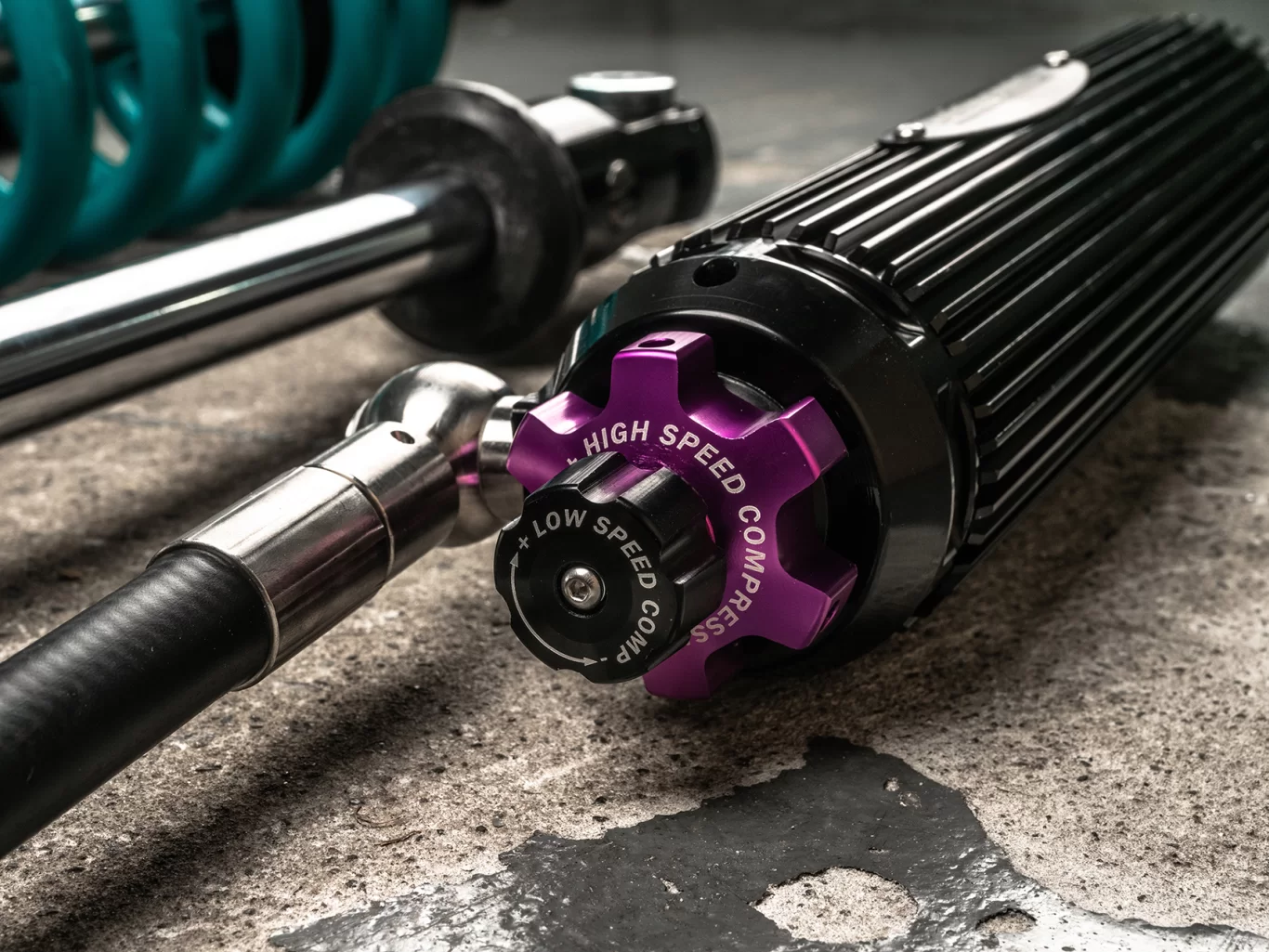

HIGH SPEED COMPRESSION ADJUSTMENT
High speed compression primarily affects the compression damping during high speed shaft movements such as harsh or square edge bumps and harsh vehicle landings.
LOW SPEED COMPRESSION ADJUSTMENT
Low speed compression primarily affects the compression damping during low speed shaft movements such as vehicle pitch, dive and roll, wheel traction and vehicle ride (harshness and plushness).
REBOUND ADJUSTMENT
Rebound damping primarily affects vehicle traction, damper top-out and vehicle body movements such as vehicle pitch, dive and roll.

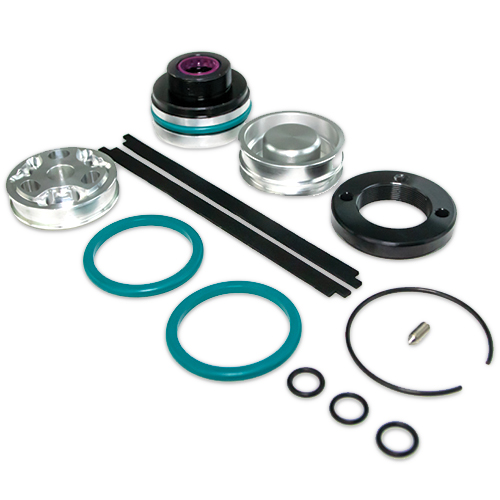

REBUILDABLE
Fully Rebuildable Design
CNC MACHINED COMPONENTS
TSUGAMI™ CNC machined components for precise tolerances
3 STAGE SEALING SYSTEM
Upgraded 3 Stage FKM‑HNBR Sealing System

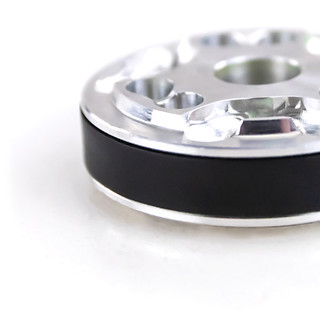

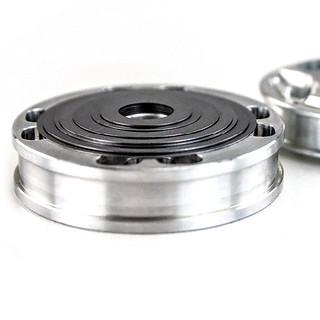

HIGH FLOW PISTON
50 / 60mm CNC Machined High Flow Billet Aluminium Race Piston

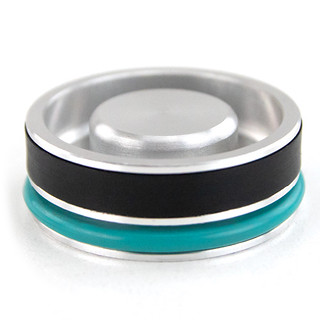

FLOATING PISTON
Lightweight CNC Machined Low Friction floating piston
COMPOSITE WEAR BAND
Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‑wear performance

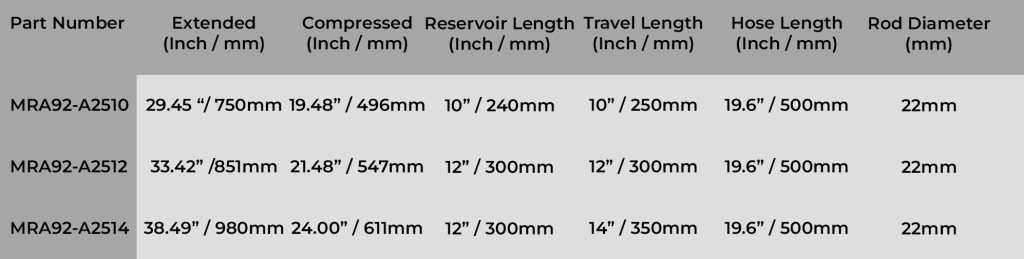

Coilover Specs

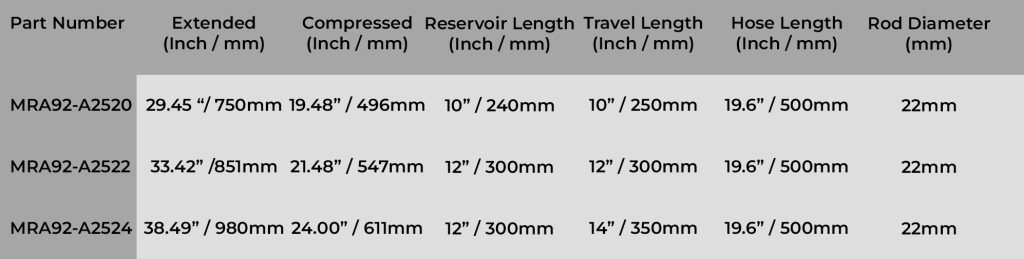

Smooth Body Shock Specs
Coilover Coil Springs
