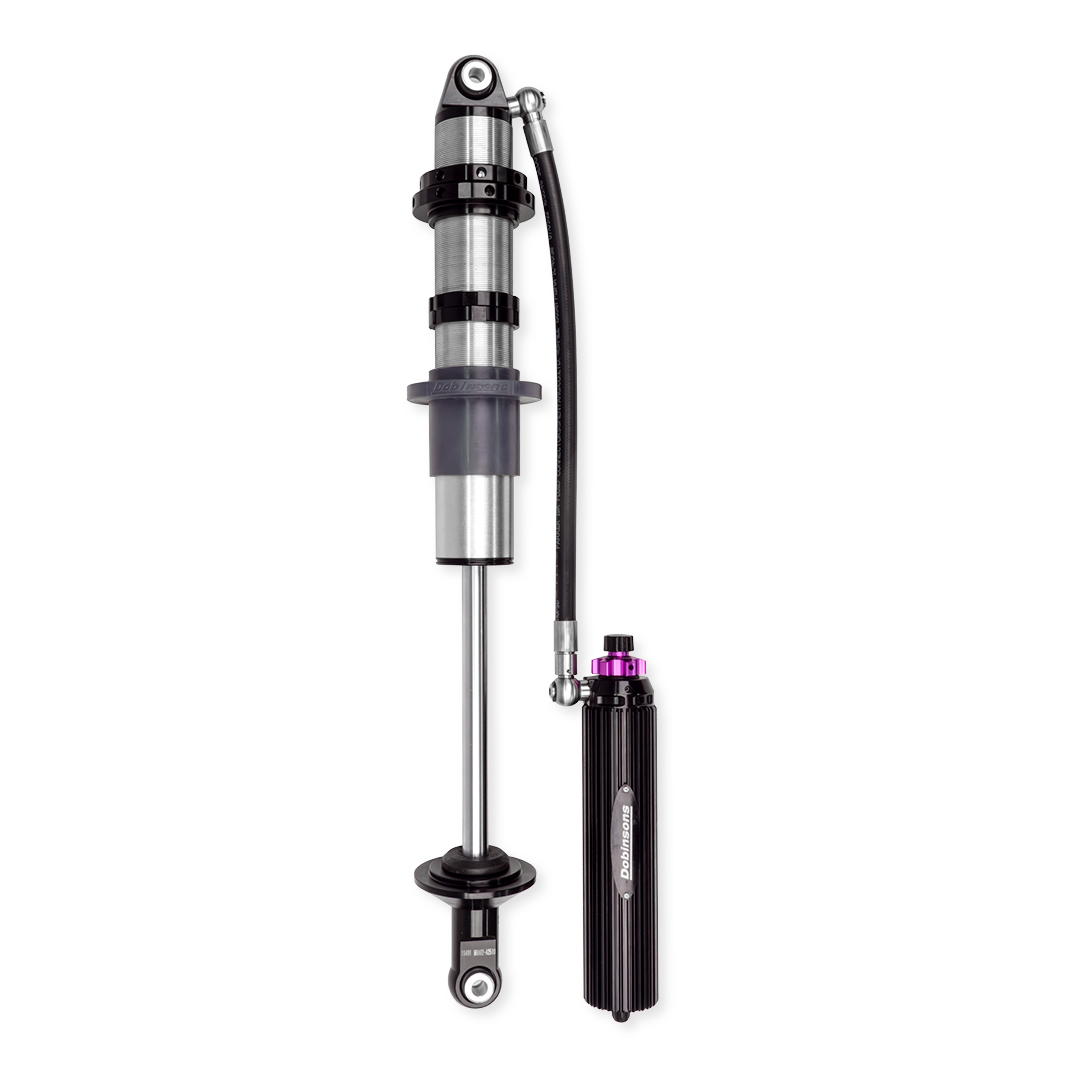

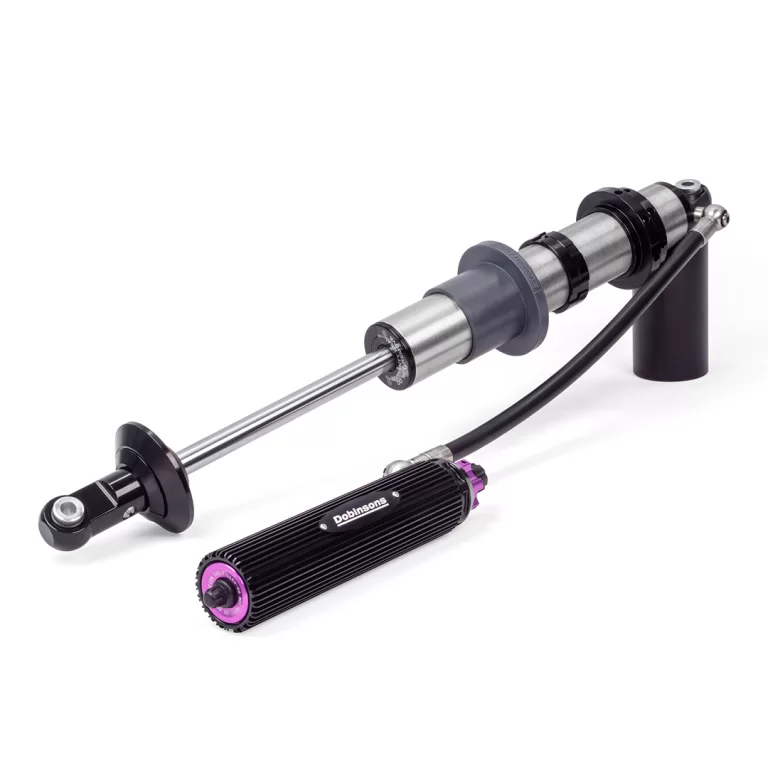

Coil-Over Shock Absorber (14″)
This new range of 2.5” Adjustable Remote Reservoir Dual Rate Coil-Overs have been designed and manufactured with the highest level of performance and reliability in mind.
Manufactured from high strength DOM 3mm wall steel tubing, Dobinsons Coil-Overs utilise a 2.6”/66mm body, with a 2.35”/60mm high-flow CNC machined t6 6061 piston, designed to be fitted with 3” inside diameter coil springs.
Description
Features
- 5140 HV900 hard chrome plated, heat treated 22mm micro-polished high strength shock shaft
- Shaft minimum tensile strength exceeding 700MPA/100 psi and hardness exceeding 46HRC
- Shock body precision honed to +/- 0.04mm
- Parker steel braided high pressure hoses
- Lightweight CNC machined low friction floating piston
- 3 stage FMK+HNBR long life, low friction sealing system
- PTFE lined high quality spherical bearings
- Fully rebuildable and tunable
- Dual rate design with high quality slider & cross-over rings
- 64mm finned reservoir
- 350v.l. high performance damping fluid
- T6061 CNC machined ultra high flow race piston
Extended: 38.49″ / 980mm
Compressed: 24.00″ / 611mm
Res Length: 12″ / 300mm
Travel Length: 12″ / 300mm
Hose Length: 19.6″ / 500mm
Rod Diameter: 22mm
