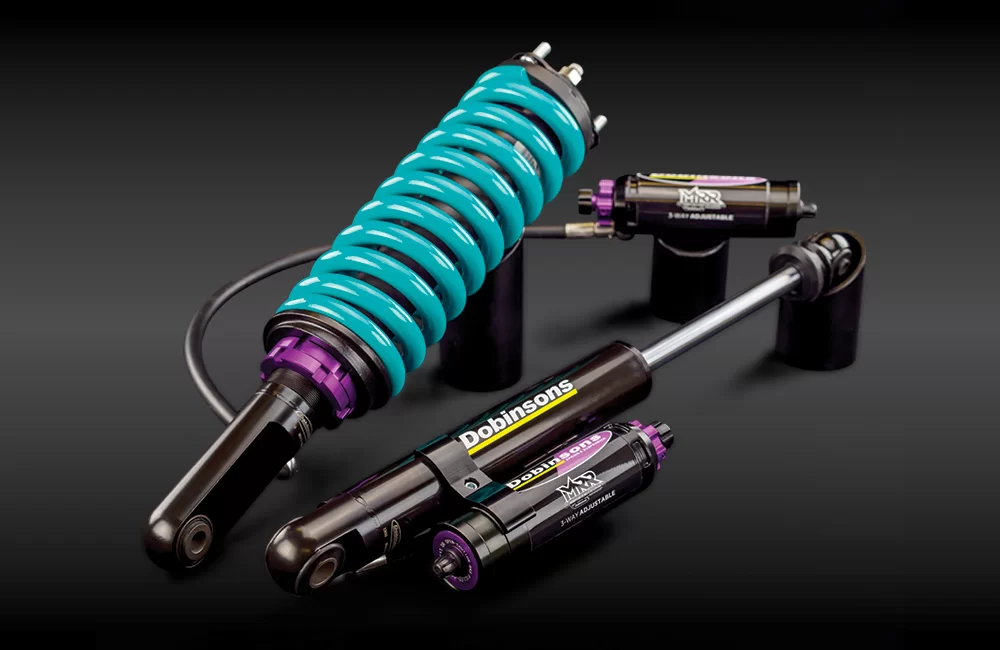

(MRA) MRR 3-WAY ADJUSTABLE SHOCKS
HIGH PERFORMANCE RACE-BRED MONOTUBE TECHNOLOGY

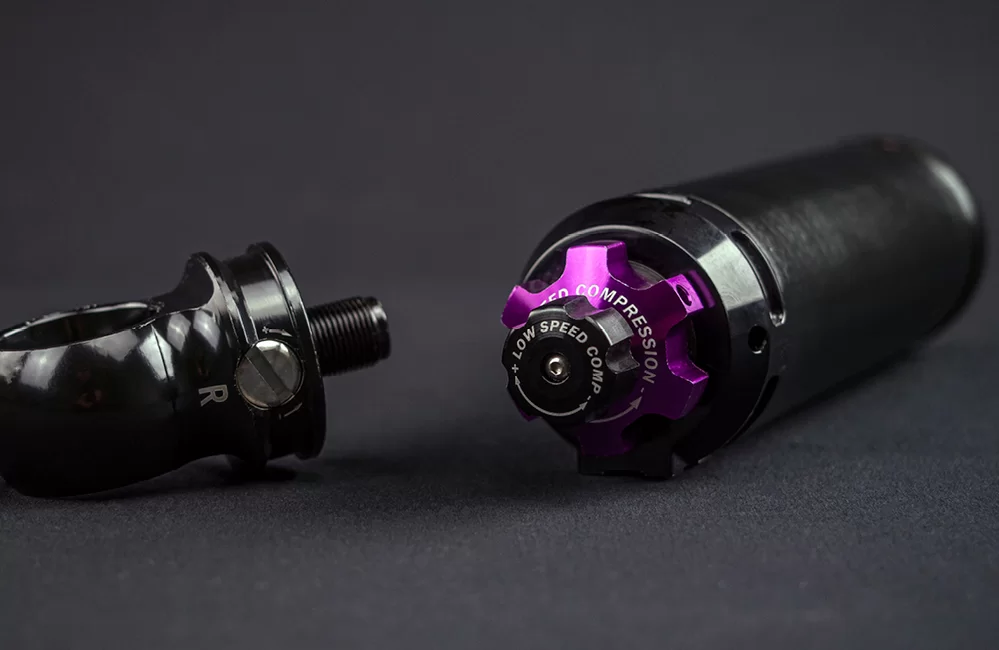

3-WAY DAMPING ADJUSTMENT
The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance.
50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

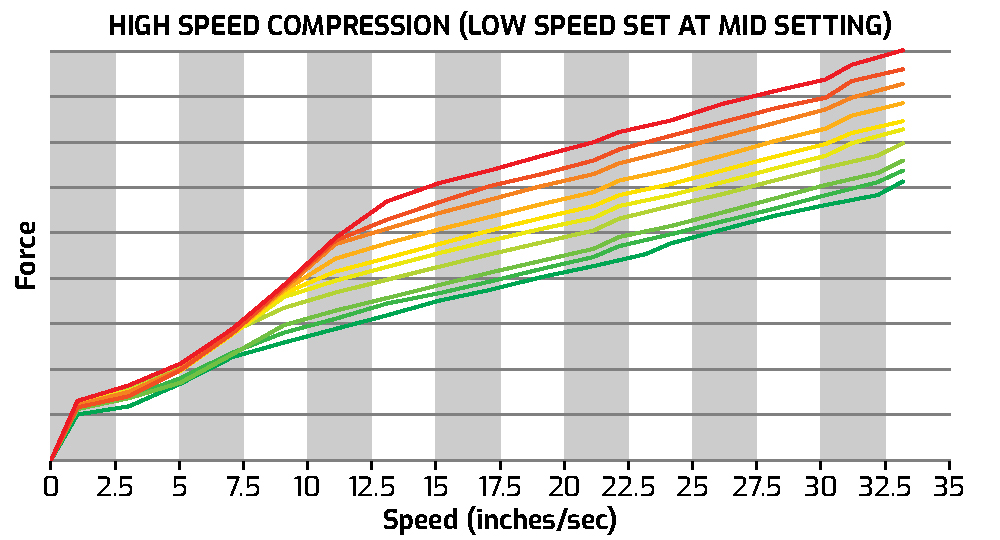

HIGH SPEED COMPRESSION ADJUSTMENT

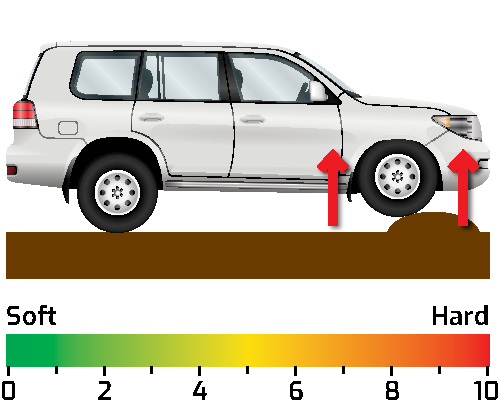

High speed compression primarily affects the compression damping during high speed shaft movements such as harsh or square edge bumps and harsh vehicle landings.

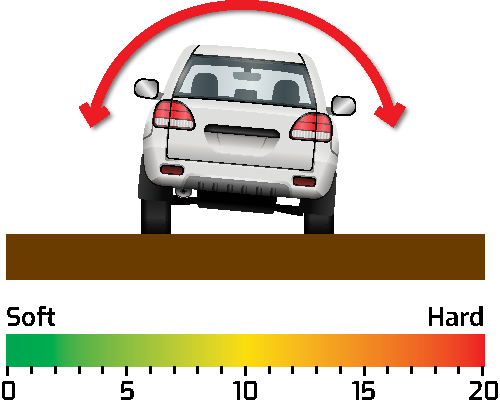

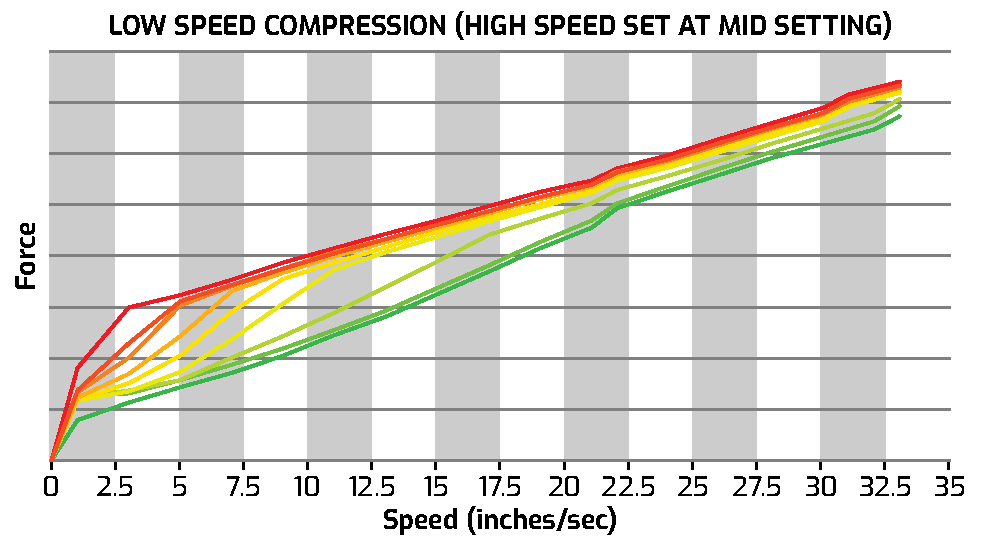

LOW SPEED COMPRESSION ADJUSTMENT
Low speed compression primarily affects the compression damping during low speed shaft movements such as vehicle pitch, dive and roll, wheel traction and vehicle ride (harshness and plushness).

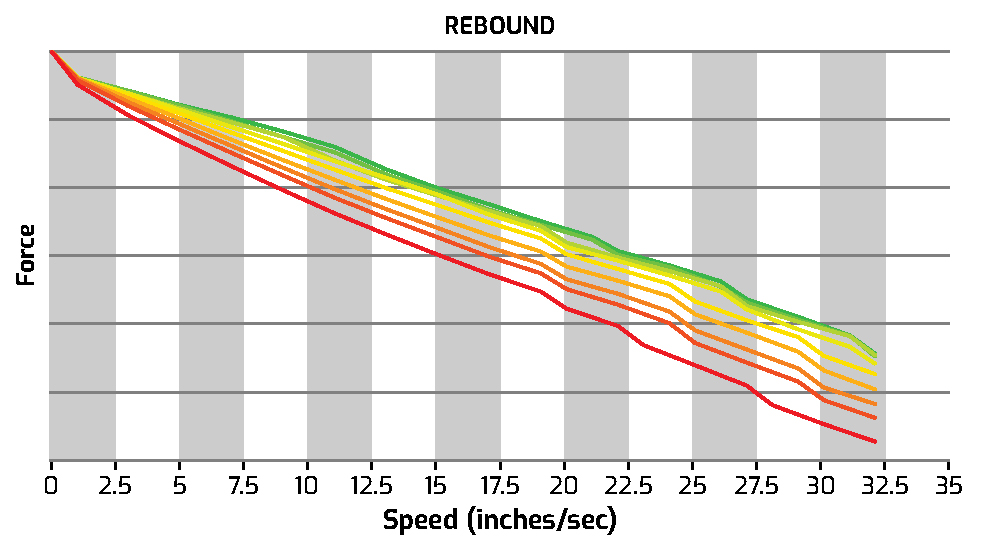

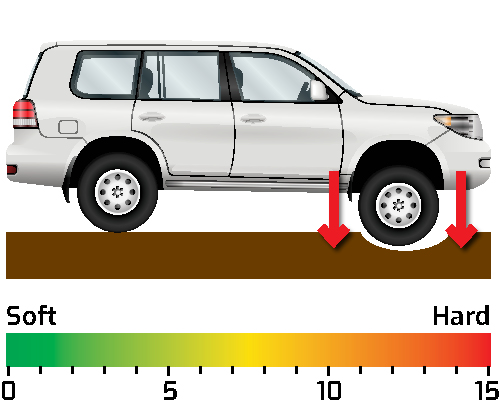

REBOUND ADJUSTMENT
Rebound damping primarily affects vehicle traction, damper top-out and vehicle body movements such as vehicle pitch, dive and roll.

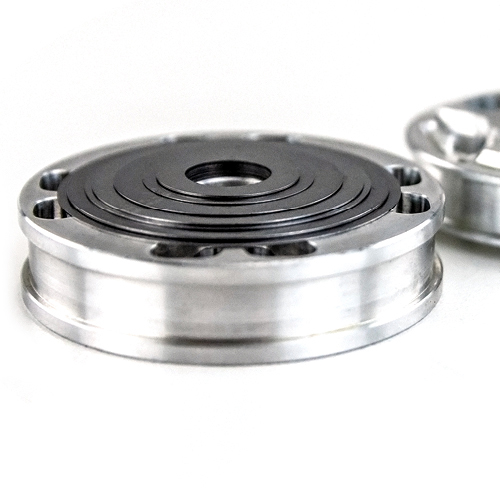

HIGH FLOW PISTON
50 / 60mm CNC Machined High Flow Billet Aluminium Race Piston

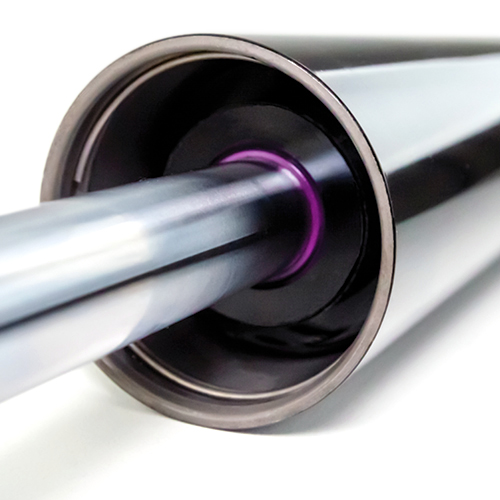

HEAVY DUTY BODY
3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. shock Body Precision Honed to +/- 0.04mm

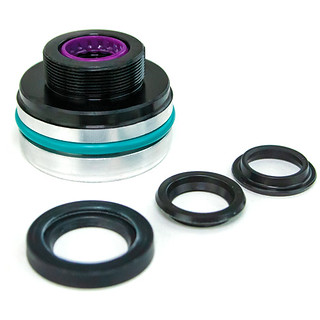

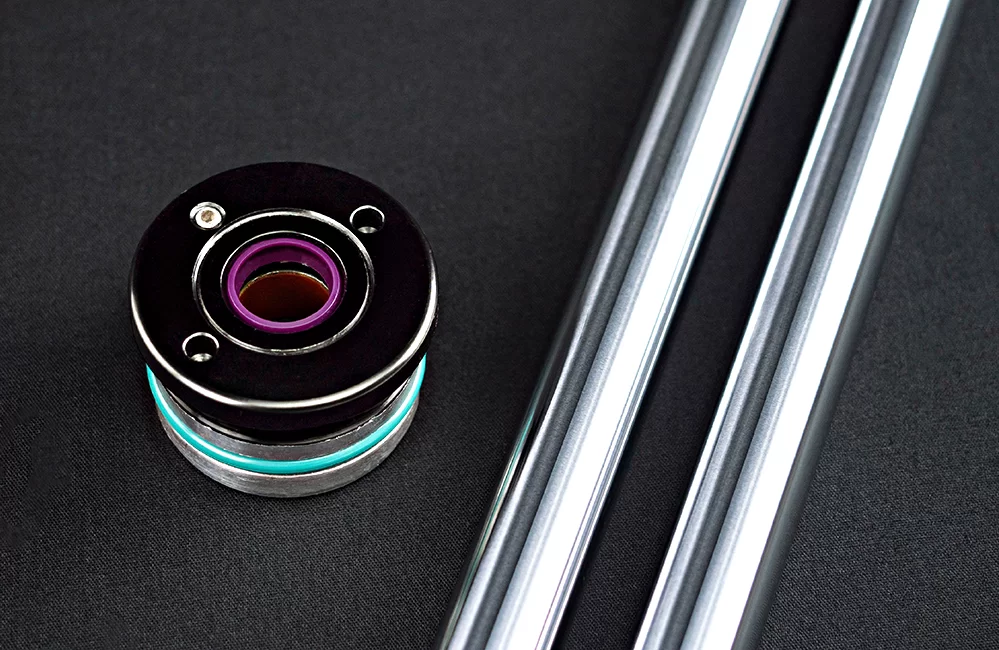

3 STAGE SEALING SYSTEM
Upgraded 3 Stage FKM‑HNBR Sealing System

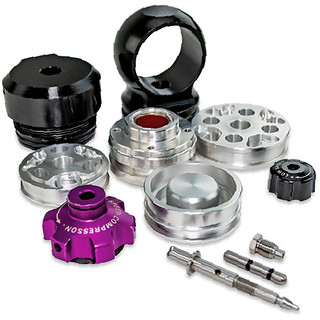

CNC MACHINED COMPONENTS
TSUGAMI™ CNC machined components for precise tolerances

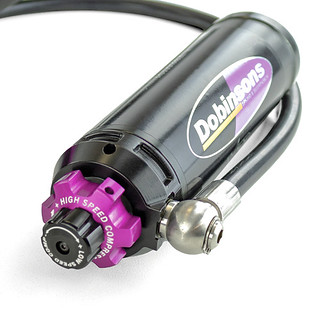

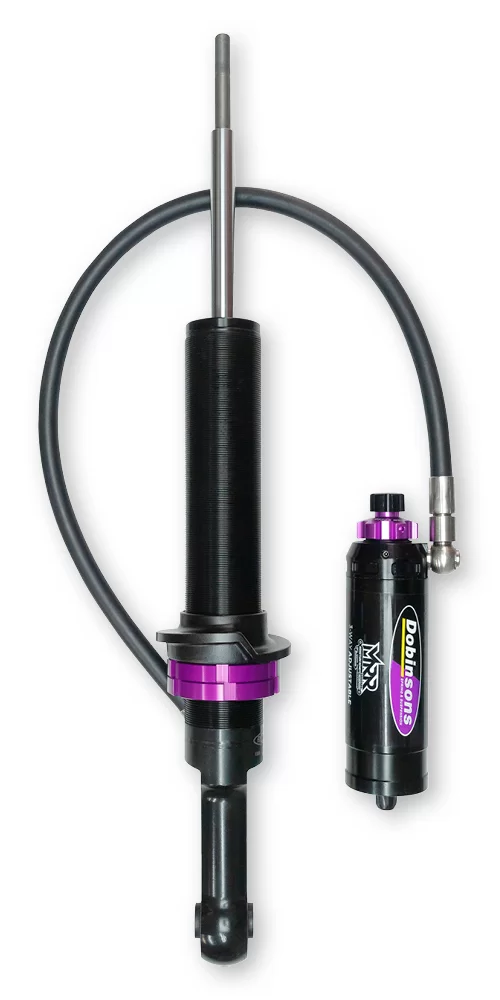

REMOTE RESERVOIR
60mm 6063 Aluminium Remote Reservoir

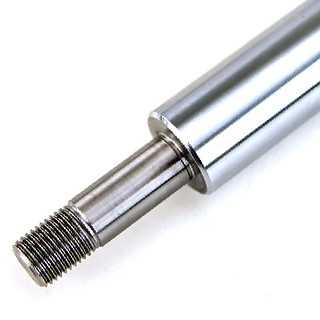

HIGH STRENGTH SHOCK SHAFT
5140 HV900 Hard Chrome Plated, Heat treated 18 / 22mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA

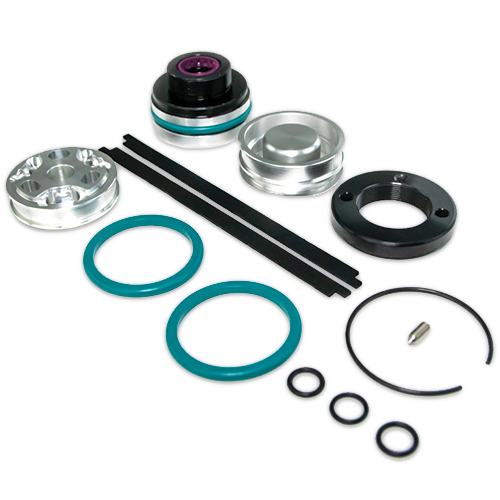

Fully Rebuildable Design

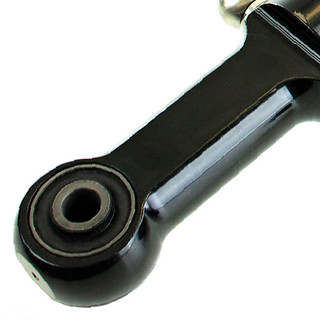

Single Piece Lower Leg
Electro-Deposit Primer Surface Protection

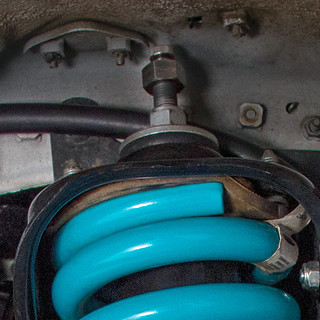

Direct Bolt-On Design

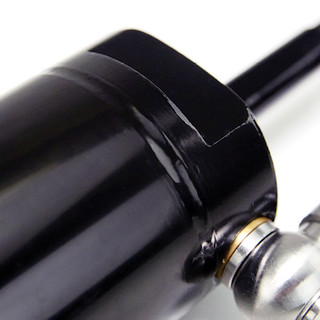

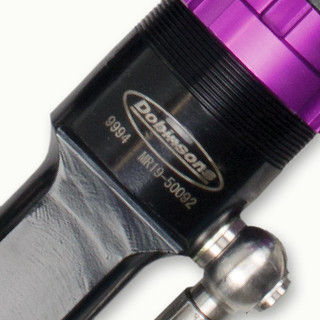

CNC TIG Precision Welded Body End Mounts

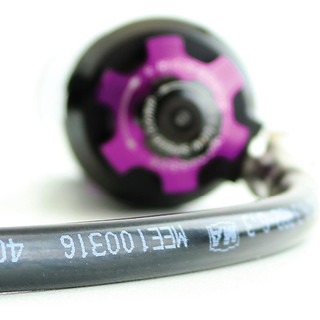

Parker Braided High Pressure Hoses

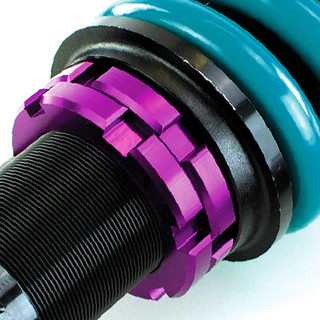

T6 6061 Height Adjustable Spring Seat*

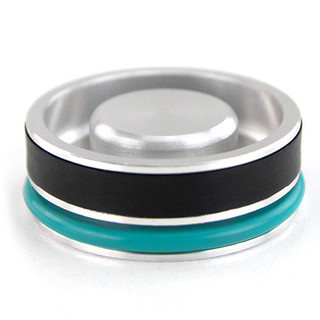

Carbon-Fiber/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance

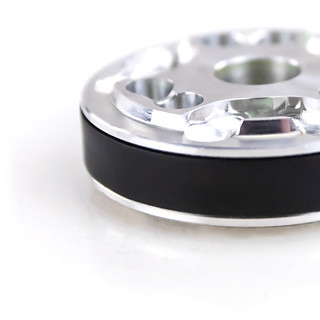

Lightweight CNC machined Low Friction floating piston

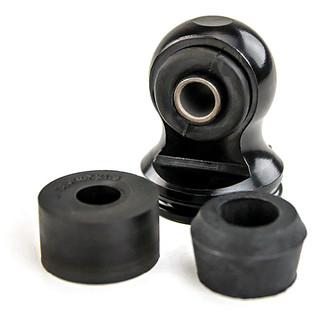

High quality O.E.M Grade Natural Rubber Bushings
THE ULTIMATE OFF-ROAD MACHINE
The 3-Way Adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride…
PERFORMANCE & OFF-ROAD DURABILITY
The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.

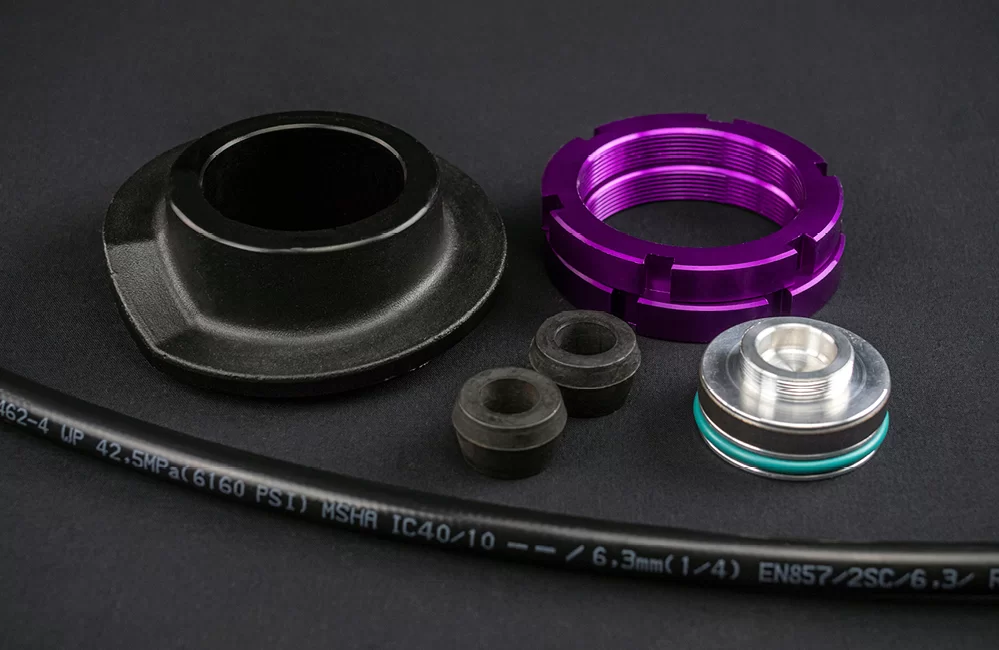

QUALITY COMPONENTS
Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.
